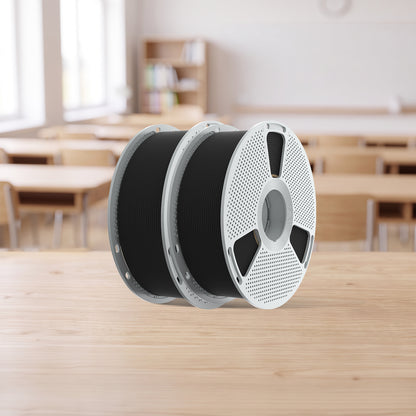

Nylon-6 Carbon Fiber (PA6-CF) 3D Printer Filament 1KG/0.5KG
Couldn't load pickup availability
Key Features
-
Carbon fiber reinforced nylon (PA6-CF)
20% carbon fiber provides exceptional stiffness, strength, and dimensional stability -
Extreme heat resistance up to 209 °C
Maintains its structural integrity even at high temperatures – ideal for demanding applications -
Industrial grade – strong & reliable
Excellent layer adhesion with high tensile, torsional, and impact strength for functional components
Diameter: 1.75 ± 0.02 mm
Printing temperature:
- 270-280℃：50 -100mm/s
Heated bed temperature:50–70 °C: Apply adhesive
Bubbles: 100% bubble-free
Net weight: 1 kg / spool
Gross weight: 1.3 kg / spool
Length: 1.75 mm (1 kg) ≈ 358 m
- Free shipping to most regions in Germany
- Guaranteed secure checkout
SUNLU Nylon-6 Carbon Fiber (PA6-CF) Filament
SUNLU PA6-CF nylon filament combines 80% PA with 20% carbon fiber, offering remarkable rigidity, strength, and heat resistance. It features excellent layer adhesion, making it ideal for demanding applications.
The SUNLU PA6-CF nylon filament combines 80% PA with 20% carbon fiber, offering remarkable rigidity, strength, and heat resistance. It features excellent layer adhesion, making it ideal for demanding applications.
High strength and rigidity: Carbon fiber reinforcement significantly increases rigidity and reduces deformation, even under mechanical load.
With a heat deflection temperature of up to 209 °C, which is significantly higher than that of Easy PA, PC, or ASA, PA6-CF is ideal for high-temperature applications such as automotive exhaust pipes, engine covers, pot handles, and kettle bases.
[Important Notes]
1. Dry the filament before use: 24 hours at 80 °C or 4 hours at 110 °C. 2. Use an abrasion-resistant nozzle (e.g., hardened steel) to prevent wear caused by the carbon fiber content of the filament.
| Recommended print settings | |
| Drying settings | 80–110°C |
| Maintaining moisture in the container | < 20 % relative humidity (sealed, with desiccant) |
| Nozzle temperature | 270-290°C |
| Bed Temperature (apply adhesive) | 50 – 70 °C |
| Print speed | 50 mm - 100 mm/s |
| Physical properties | |
| Density | 1.12 g/cm³ |
| Vicat softening temperature | / |
| HDT (Heat Deflection Temperature) | 203±3°C |
| Melting point | 225°C |
| Melt index | 16.5±3 g/10 min |
| Mechanical properties | |
| Tensile strength | 112±10 MPa |
| Elongation at break | 12±3% |
| Flexural strength | 192±20 MPa |
| Flexural modulus | 8600±400 MPa |
| IZOD notched impact test (X-Y) | 6.5±2 kJ/m² |
